The CCC Dashboard in your Mac's menubar

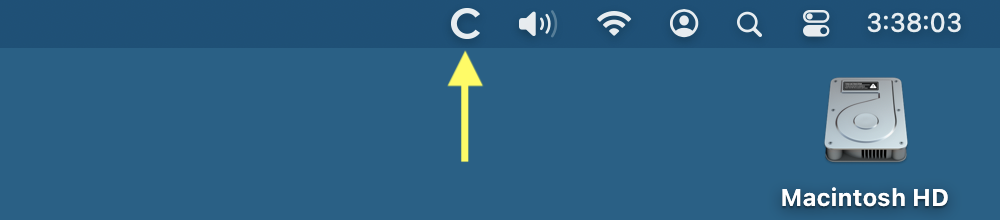

CCC's Dashboard application gives you quick access to your tasks via a "C" icon in the macOS menubar so that you can quickly determine their status, see which tasks are running, and start, stop, or pause a particular task. The Dashboard also presents a stream of CCC activity, indicates snapshot disk usage on all of the APFS volumes mounted on your Mac, and proactively alerts you to excessive snapshot disk usage on the startup disk. At a glance, the icon that CCC presents in the menubar gives you information about CCC's state:
: No tasks are running
: One or more tasks are running
: CCC requires your attention
: CCC tasks are disabled

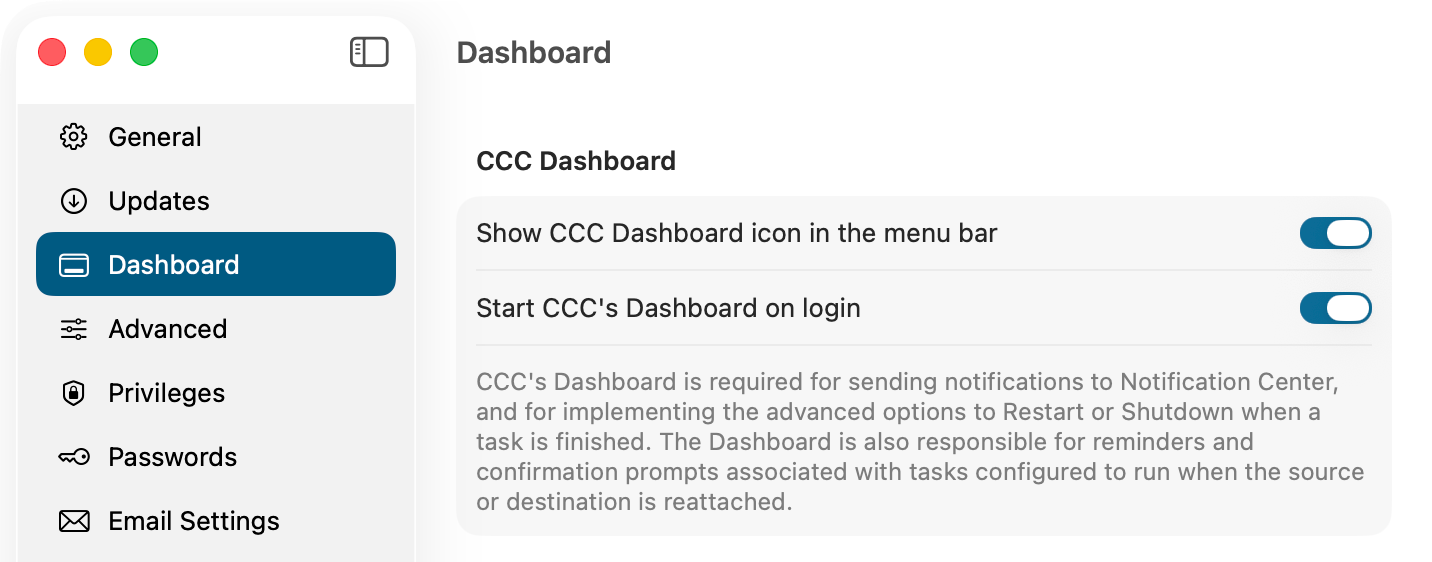

To choose whether CCC's Dashboard icon appears in your menubar, click Settings in the CCC toolbar, then click Dashboard in the Settings window toolbar.
Task monitoring

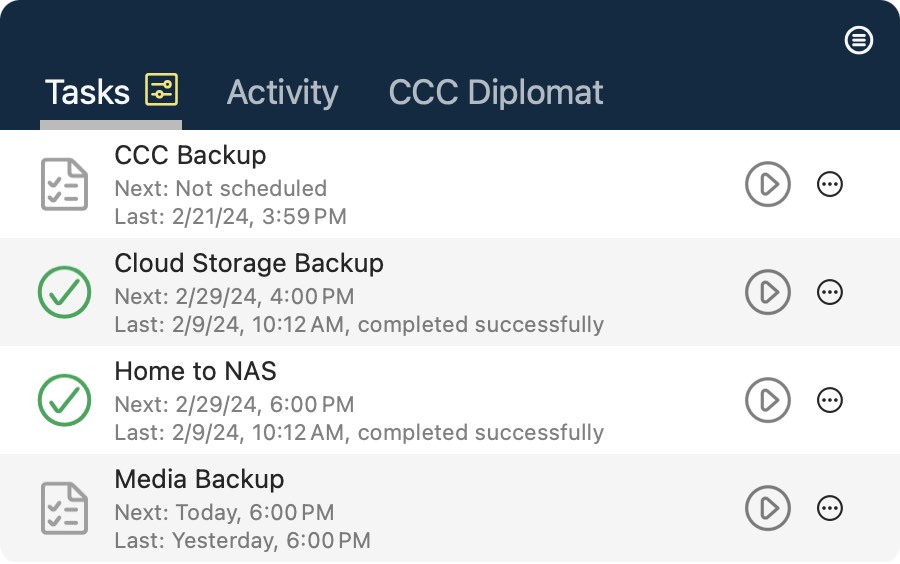

In the Tasks tab of the CCC Dashboard, you can use the controls on each task to start, stop, or (when applicable) pause a task. Click on the "Additional controls" button for options to open the task in CCC and show the task's history.
The task icon will indicate the task's most recent state, e.g. a green checkmark to indicate that the task ran successfully, or a red "x" to indicate that the last task encountered an error. Below the task name, CCC will indicate the task's next run time by default. To change the information that is displayed here, click on the Tasks tab header to reveal the settings for this tab.
The mini task progress window
The mini task progress window is disabled by default. If you would like to have this window appear every time a task is running, click on the Tasks tab header, click on the icon to reveal the Tasks tab settings, then check the box to show the mini task progress window when a task is running. Note that the window only appears when a task is currently running.
Activity
The Dashboard's Activity tab shows a stream of CCC-related activity, e.g. when tasks start and complete, reminders to run tasks, and snapshot pruning. When an event occurs that deems your attention (e.g. if a task completes with an error), the CCC Dashboard icon will be adjusted accordingly, and an alert icon will be placed in front of the Activity tab's name. You can click the arrow button to the right of a task-related event to open the affected task in CCC.
Removing activity
Events in the Activity tab are automatically cleared out every time you log in, and whenever CCC is updated – this is not designed to be a permanent record of CCC activity, rather it's a "live stream" of activity. You don't have to remove events from the Activity tab, but if you would like to remove events manually, simply select the event(s) and press the Delete key.
Sharing alerts with the macOS Notification Center

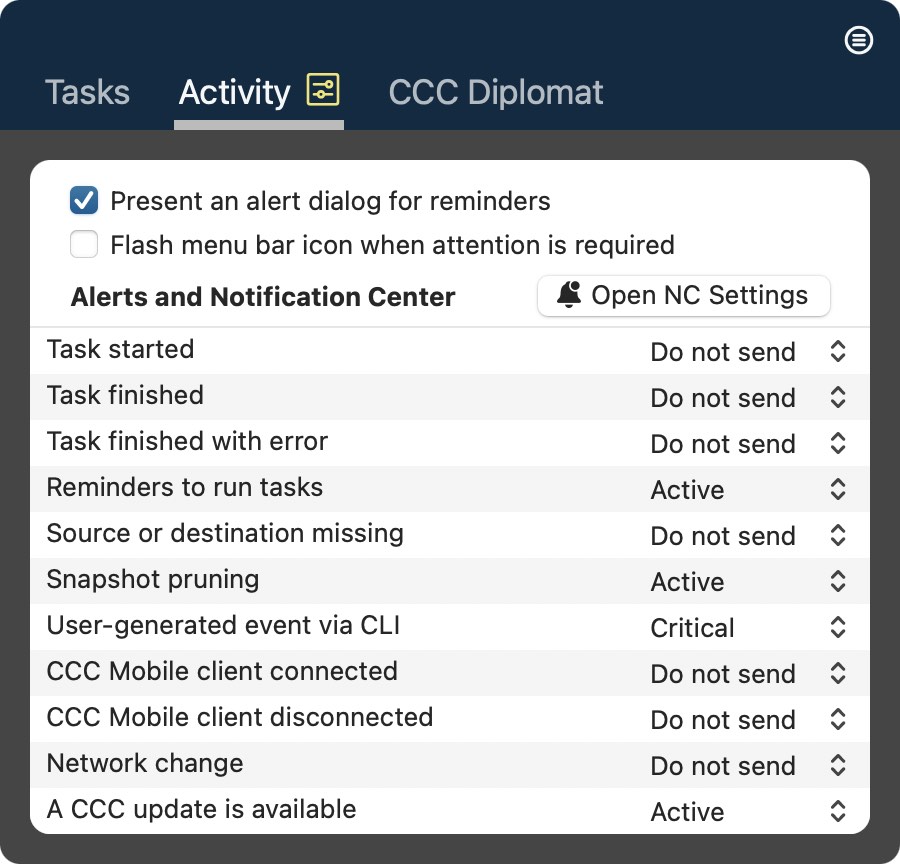

If you would like CCC activity events to also appear in the macOS Notification Center, click on the Activity tab header, then click on the icon to reveal the Activity tab settings.
You can specify an alert level for each activity type:
- Do not send: These events aren't sent to Notification Center at all.
- Passive: The event will be added to the Notification Center list, but no alert will be presented and no sound will be played.
- Active: The event will be added to the Notification Center list and a notification will be presented, but no sound will be played.
- Critical: The event will be added to the Notification Center list, a notification will be presented, and the Notification Center alert sound will be played.
Note that adding notifications to the Notification Center list, the presentation of alerts/banners, and the playing of sounds are all dependent on the preferences you have defined in System Settings > Notification Center. CCC cannot override those preferences, nor can it define whether a notification will be presented as an alert or a banner. Click the Open NC Settings button to configure how these notifications are managed and presented by macOS's Notification Center.
Also note that notifications will not be sent to Notification Center if CCC or the Dashboard application is front-most.
Removing CCC Dashboard from the Notification Center
If you would like to remove CCC Dashboard (or any third-party application for that matter) from the list in the Notification Center, simply select that application in the Notification Center list and press the Delete key.
CCC Diplomat

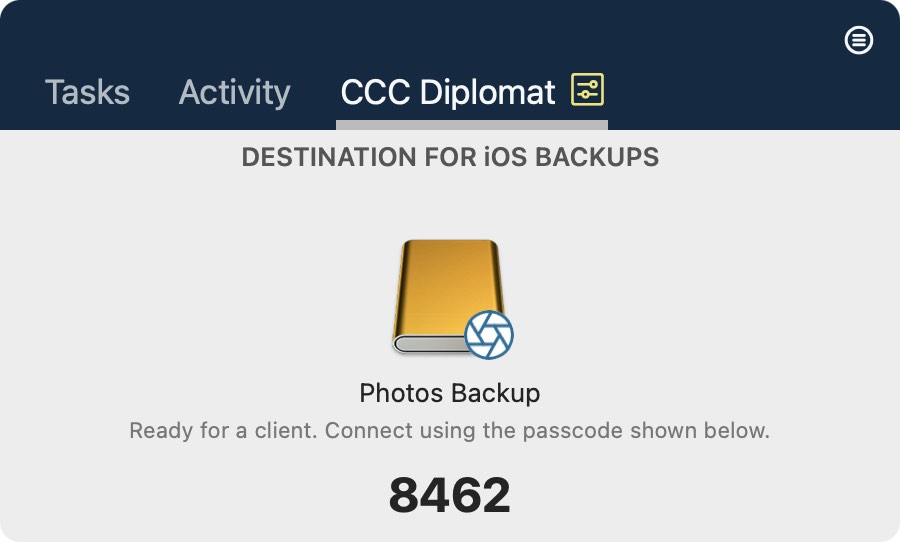

The CCC Diplomat is a service that you can enable to provide a destination for backups of photos and files on your iOS mobile devices. To set a destination, click on the Destination selector icon. The Backup Volume Setup Assistant will offer some guidance for configuring the volume or selecting an alternative volume. Alternatively, you may select a folder as the destination for your iOS backups.
Diplomat Settings
If you would like to regenerate the pass code used to connect to the Diplomat service, or configure CCC to unmount the backup volume when not in use, click on the icon to reveal the CCC Diplomat tab settings.
Making backups from an iOS device
Download CCC Mobile Backup from the Mac App Store to make backups of Photos and Files from your iOS device.
Related Documentation
Suspending tasks

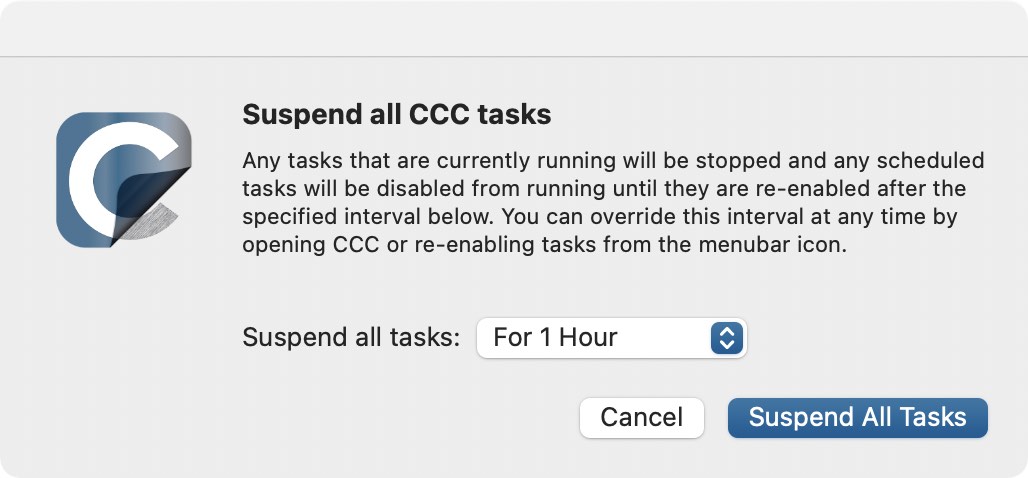

If you would like to suspend all tasks, click the "more actions" button in the Dashboard header, then choose Suspend all tasks.... CCC will offer a list of choices ranging from one hour to one week, and also an option to suspend tasks indefinitely. To re-enable tasks, choose Re-enable all tasks from the same menu, or simply open CCC and choose to re-enable tasks when prompted.
Note: If you would like to disable an individual task, choose Open task... from the task's "more actions" button. In CCC, right-click on the task you would like to disable and choose the option to disable the task. Note that task suspension and disabling tasks are separate. If you suspend all tasks, then later lift the suspension, any tasks that you had previously disabled individually will remain disabled.
Deferring a running task

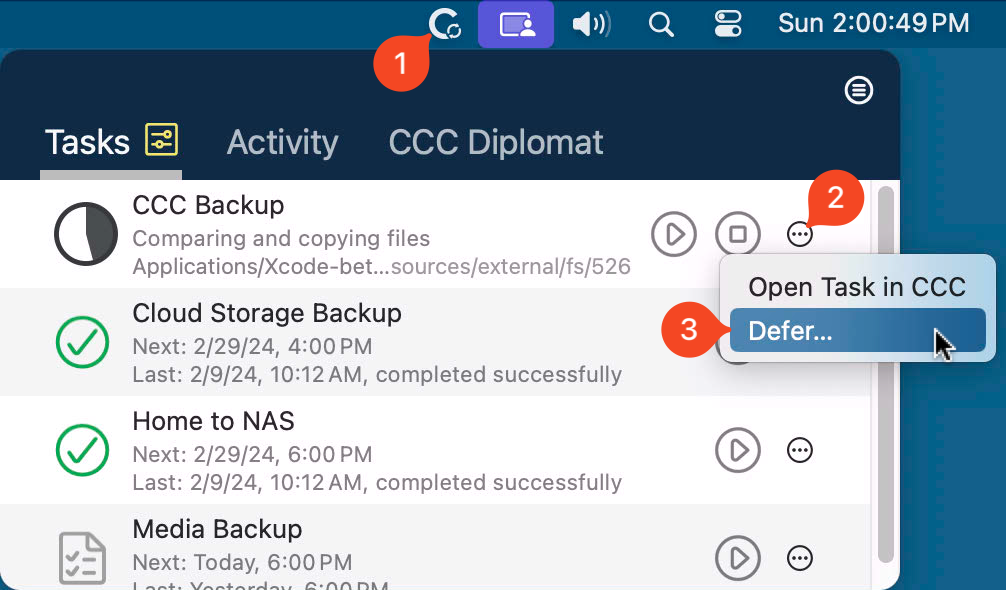

If you find that a task is running at an inopportune time and you want to pause it for longer than a few minutes, you can defer the task to a specific time in the future. Click CCC's menubar icon to reveal the Dashboard, then choose "Defer..." from the "additional actions" menu for the task. A window will appear prompting you to select the date and time that the task should run again.
Some features of CCC will be disabled if the CCC Dashboard is not configured to start on login
The CCC menubar application is named "CCC Dashboard", and is bundled inside of the CCC application file. The Dashboard places the CCC icon in the menubar and hosts its associated Dashboard window, but it also provides other proxy-like functionality for CCC's background helper tool. The following features are provided by the CCC Dashboard:
- Task started and Task finished Notifications
- The advanced options to Restart or Shutdown when a task is finished
- For tasks configured to run when the source or destination is reattached:
- Ask for confirmation before proceeding
- Remind me if my task hasn't run in a while

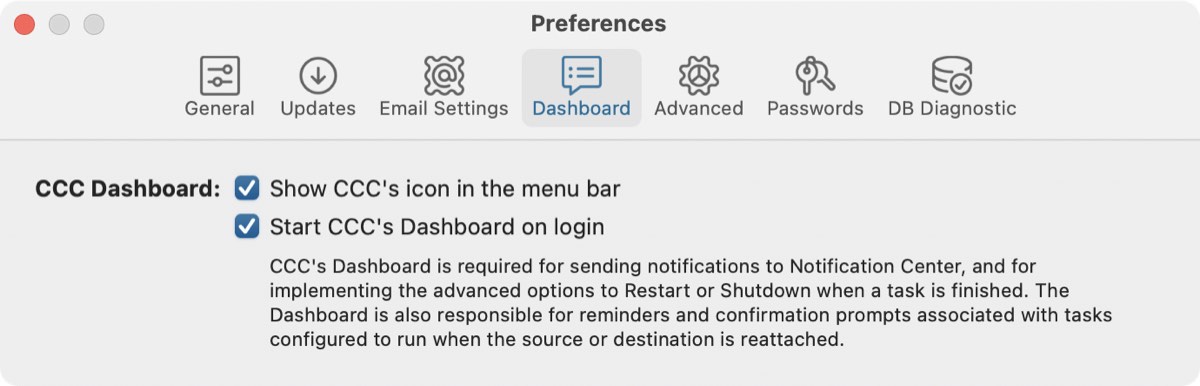

If you have not configured CCC's Dashboard to be opened on login, then the features listed above cannot be performed reliably. As a result, those features will be disabled until you configure the Dashboard as a login item. You can change the CCC Dashboard login item setting in the Dashboard section of CCC's Settings window at any time.
